GREASE NIPPLES FOR LUBRIFICATING THE PULLEYS OF CABLE DRIVERS

English Version

Description: These tins were used by members of the I.S. (Safety Systems) teams during routine maintenance of the pulley-based transmission systems with steel cables, the gearboxes of the barriers and control boxes at remote level crossings and, above all, the signal transmission systems from the control stations.

In addition to a leather bag containing the tools required for maintenance, I.S. staff also carried vials of mineral oil for lubricating the pulleys through which the steel cables of the transmission systems run.

It is extremely important that the cable runs smoothly through the groove of the pulley to prevent the mechanism for closing the level crossing barriers and the warning and safety signals at stations from jamming.

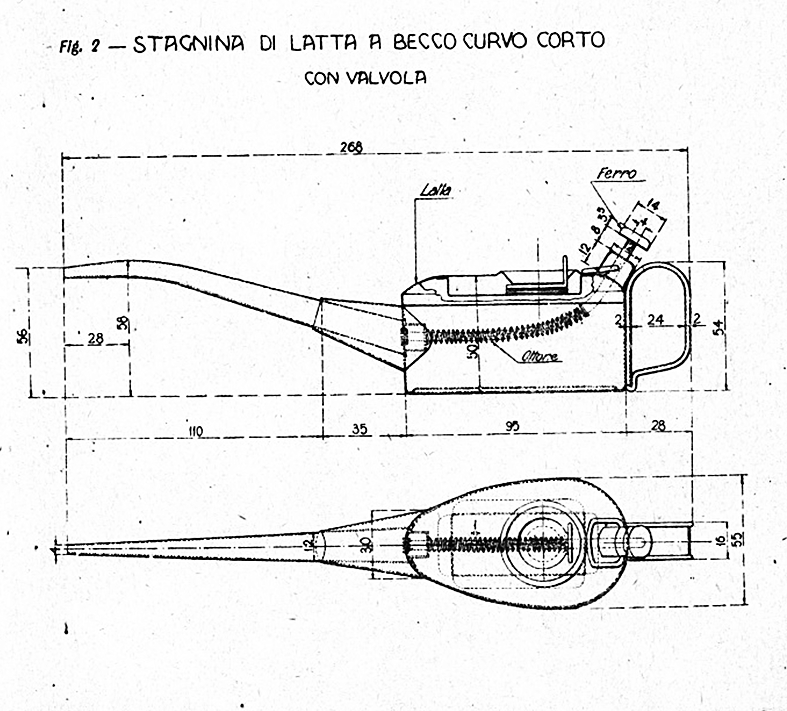

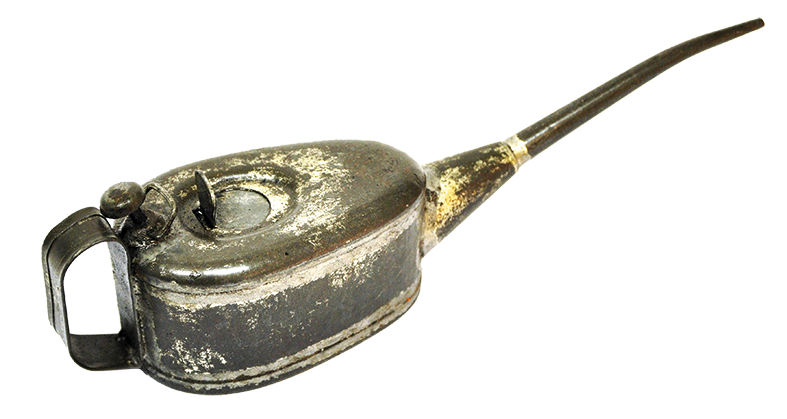

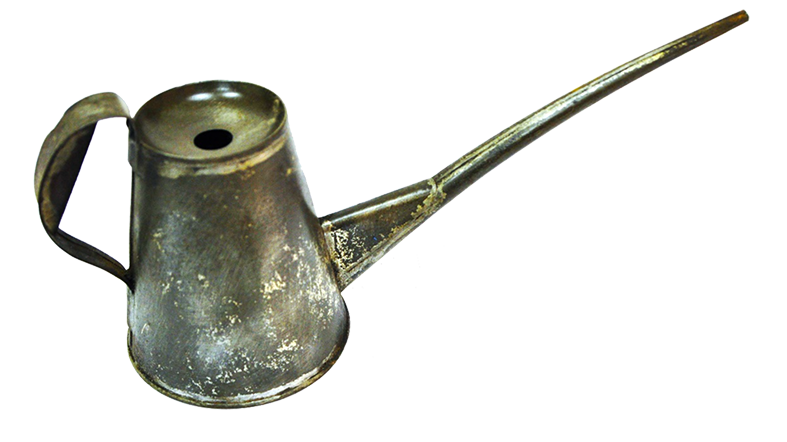

The small oil can with a valve was the main tool for lubrication, followed by the medium-sized oil can, which was needed for replenishing the mineral oil.

Pubblicazioni correlate:

Biblioteca Ferrovie Arrugginite

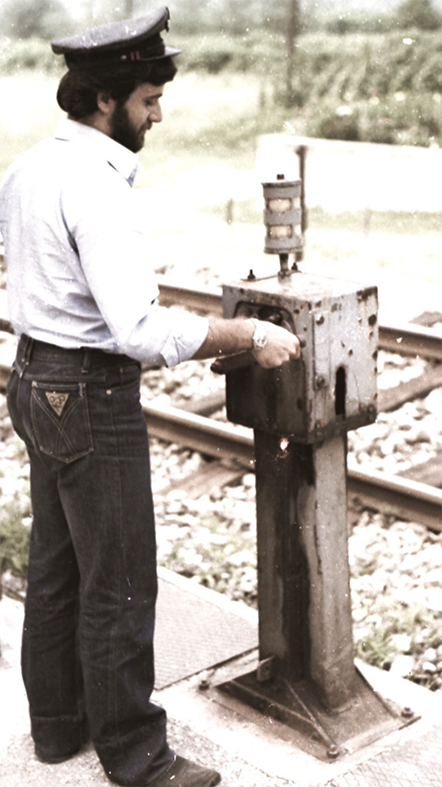

In figura a sinistra: casellante che chiude il passaggio a livello con l’arganello a mano.
In the picture above: a level crossing attendant closing the level crossing using a hand-operated winch.

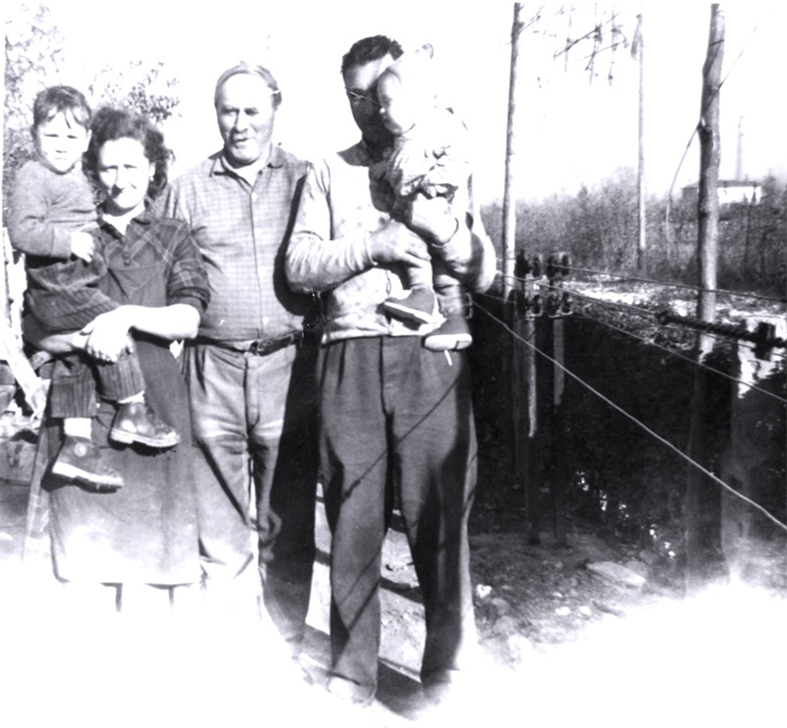

In figura a destra: famiglia di casellante nel cortile della casa cantoniera. Si notano ile carrucole con i cavi per i P.L. a distanza.
In the picture opposite: a roadmender’s family in the courtyard of the roadmender’s cottage. Note the pulleys with the cables for the remote-controlled traffic lights.
